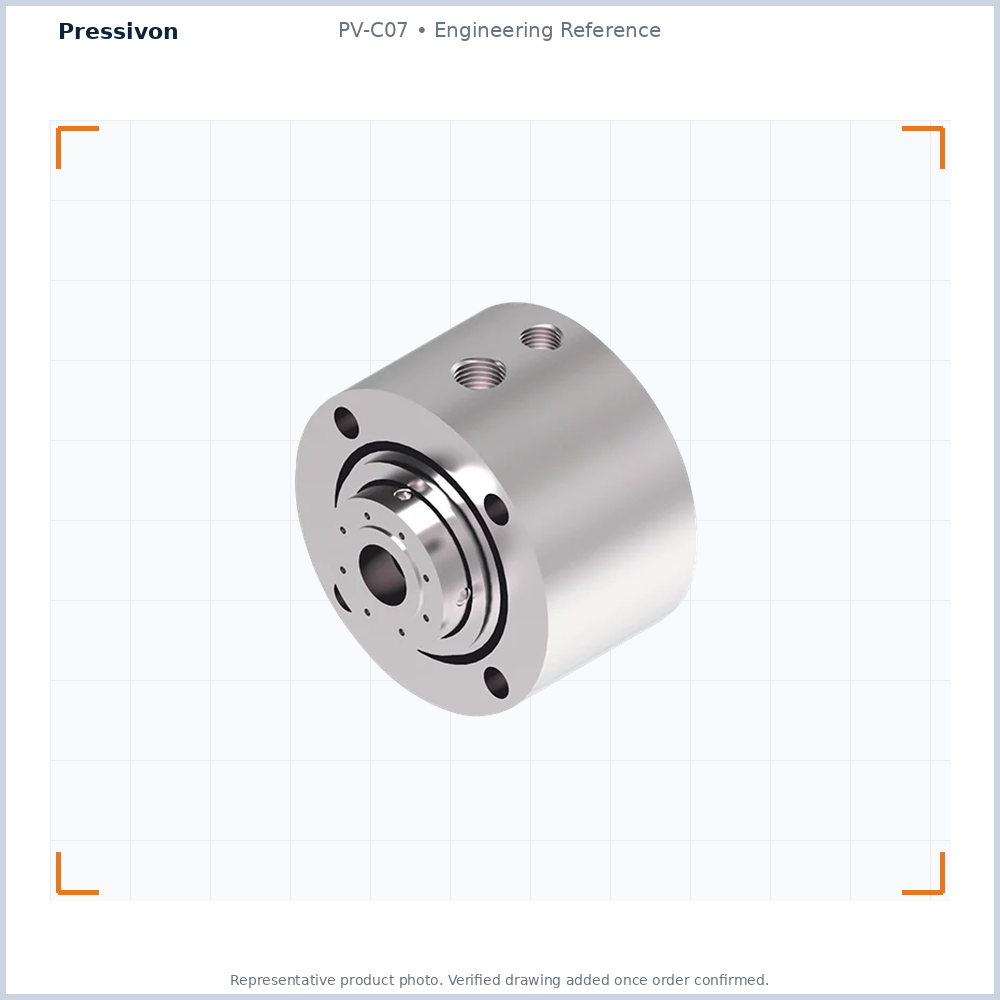

PV-C07 — Pusher Mechanical Seal
Pusher/cartridge mechanical seal series. Tell us your equipment and operating conditions and we confirm the fit before quoting.
PV-C07 • Engineering Reference
Overview
Pusher Mechanical Seal in the cartridge seals family, part of the PV-C07 series. Pusher/cartridge mechanical seal series. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-C07 |
|---|---|
| Type | Pusher Mechanical Seal |
| Family | Cartridge seals |
| Series | PV-C07 |
Materials
| Seal faces | Silicon carbide, carbon graphite |
|---|---|
| Secondary seals | EPDM, NBR, FKM, FFKM |
| Metal components | SS316, SS304 |
Operating limits
| Shaft diameter | 20 – 110 mm |
|---|---|
| Pressure | 40 bar |
| Temperature | -40 to +220°C |
| Sliding velocity | 23 m/s |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Single seal, cartridge
- Built to API 682 / ISO 21049, Category 2 & 3, Type A, Arrangement 1
- Works in either shaft rotation
- Rotating multi-spring
- Integrated pumping device available (H75VP)
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-C07 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
