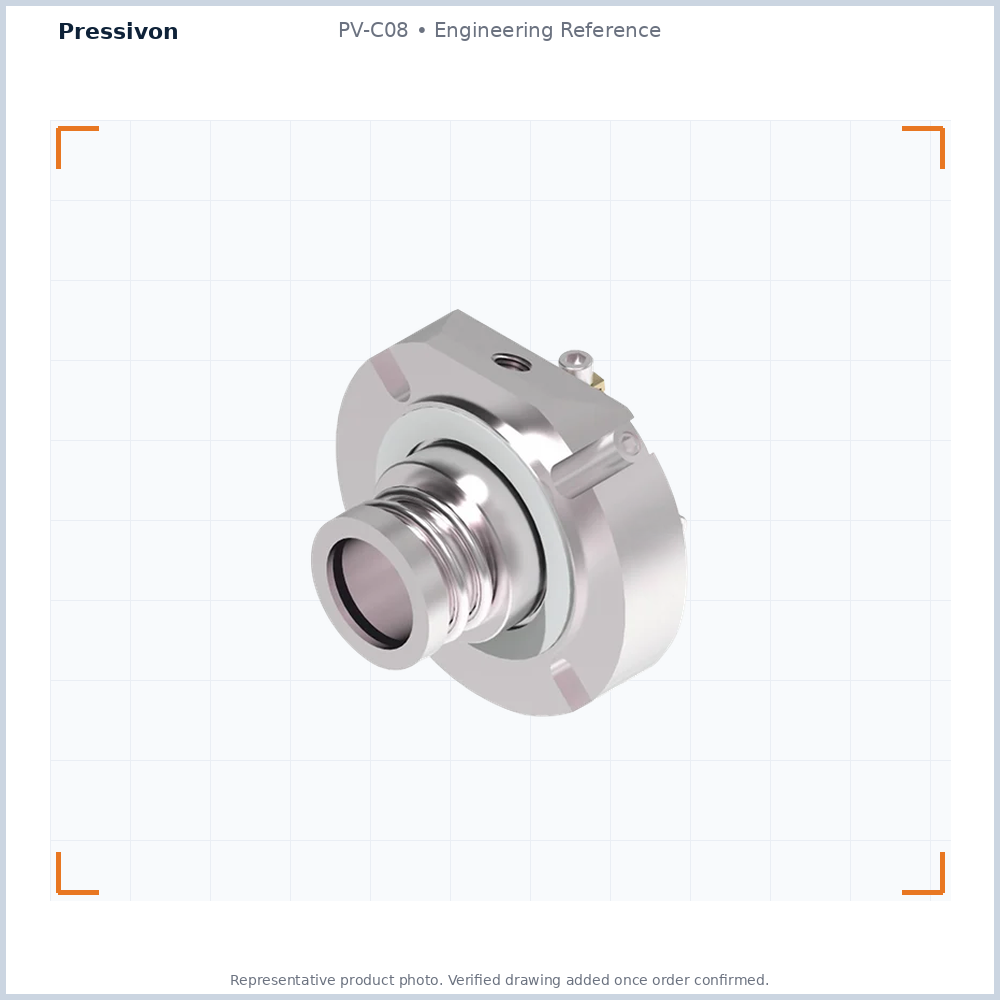

PV-C08 — Standard Cartridge Elastomer Bellows Seal
Cartridge seal with elastomer bellows. Tell us your equipment and operating conditions and we confirm the fit before quoting.
PV-C08 • Engineering Reference
Overview
Standard Cartridge Elastomer Bellows Seal in the cartridge seals family, part of the PV-C08 series. Cartridge seal with elastomer bellows. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-C08 |
|---|---|
| Type | Standard Cartridge Elastomer Bellows Seal |
| Family | Cartridge seals |
| Series | PV-C08 |
Materials
| Seal faces | Graphite-resin-impregnated carbon, silicon carbide |
|---|---|
| Secondary seals | FKM, EPDM |
| Metal components | SS316, SS304 |
Operating limits
| Shaft diameter | 25 – 75 mm |
|---|---|
| Pressure | 12 bar |
| Temperature | -20 to +140°C |
| Sliding velocity | 10 m/s |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Single cartridge seal, elastomer bellows, unbalanced
- Works in either shaft rotation
- Stationary seat, rotating spring
- Bellows and spring carry no torsional load
- Metric and inch sizes
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-C08 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
