PV-C02 — ANSI Standard Single Cartridge Seal
ANSI cartridge seal series. Tell us your equipment and operating conditions and we confirm the fit before quoting.

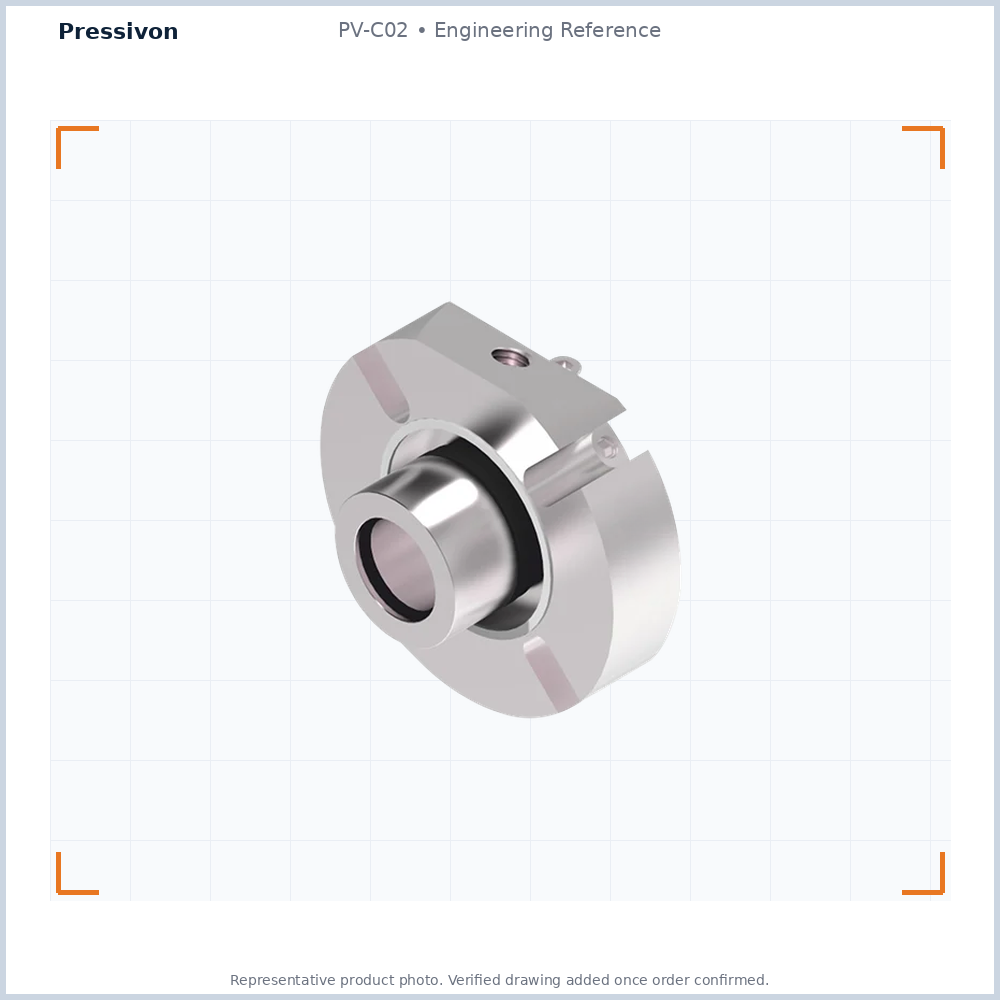

PV-C02 • Engineering Reference
Overview
ANSI Standard Single Cartridge Seal in the cartridge seals family, part of the PV-C02 series. ANSI cartridge seal series. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-C02 |
|---|---|
| Type | ANSI Standard Single Cartridge Seal |
| Family | Cartridge seals |
| Series | PV-C02 |
Materials
| Seal faces | Silicon carbide, graphite-resin-impregnated carbon, tungsten carbide |
|---|---|
| Secondary seals | EPDM, FKM, FFKM, PTFE |
| Metal components | SS316, SS304 |
Operating limits
| Shaft diameter | 1.000" – 3.750" |
|---|---|
| Pressure | 25 bar |
| Temperature | -40 to +220°C |
| Sliding velocity | 16 m/s |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Single seal, cartridge, balanced
- Standard or big-bore seal-chamber versions
- Works in either shaft rotation
- Flush and quench options (lip-seal or throttle-ring)
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-C02 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
