PV-S02 — Split Seal Series
Split-seal engineering series. Tell us your equipment and operating conditions and we confirm the fit before quoting.

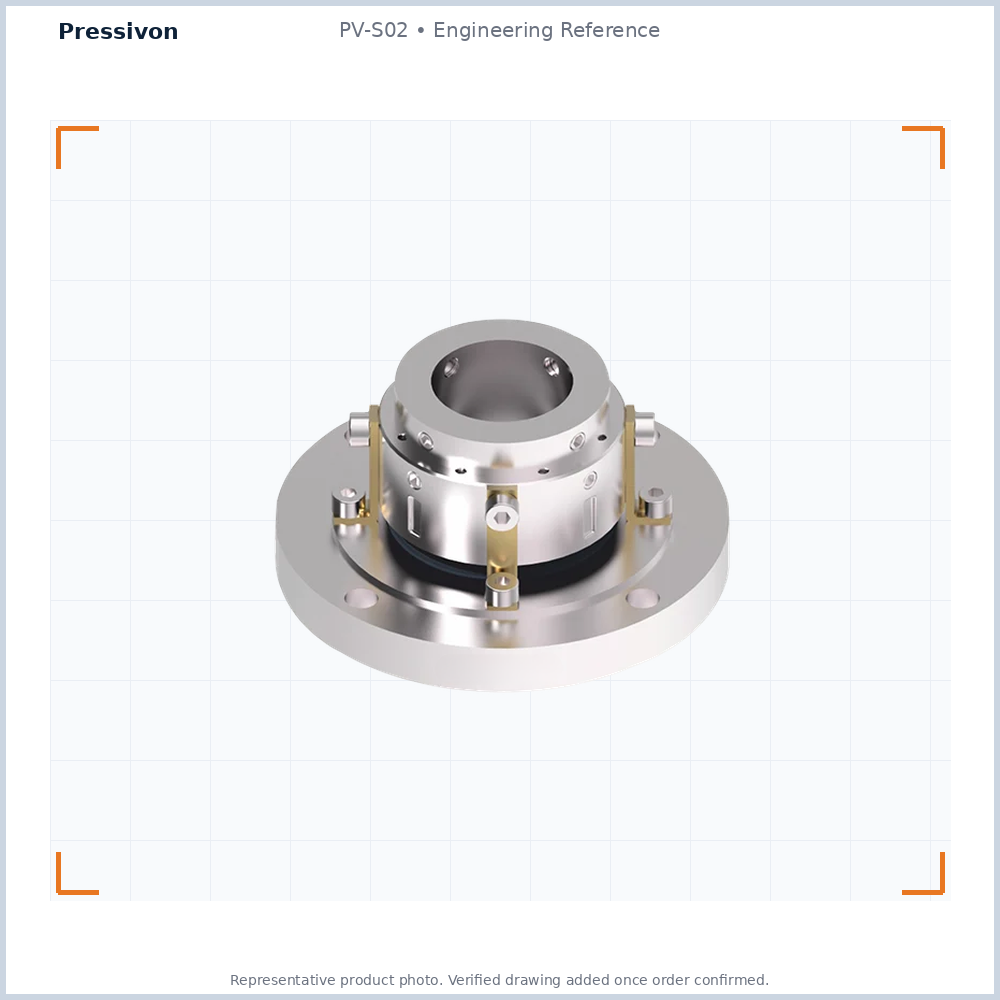

PV-S02 • Engineering Reference
Overview
Split Seal Series in the split seals family, part of the PV-S02 series. Split-seal engineering series. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-S02 |
|---|---|
| Type | Split Seal Series |
| Family | Split seals |
| Series | PV-S02 |
Materials
| Seal faces | Carbon, silicon carbide |
|---|---|
| Secondary seals | Elastomer with FEP multi-spring seal |
| Metal components | SS316, SS304, Hastelloy-C, Hastelloy-B, Monel, Alloy-20 |
Operating limits
| Shaft diameter | 15 – 100 mm |
|---|---|
| Pressure | 10 bar |
| Temperature | Ambient to +120°C |
| Speed | 320 rpm |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Single acting, reverse-balanced
- Outside mounted
- Works in either shaft rotation
- Dry-running capable
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-S02 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
