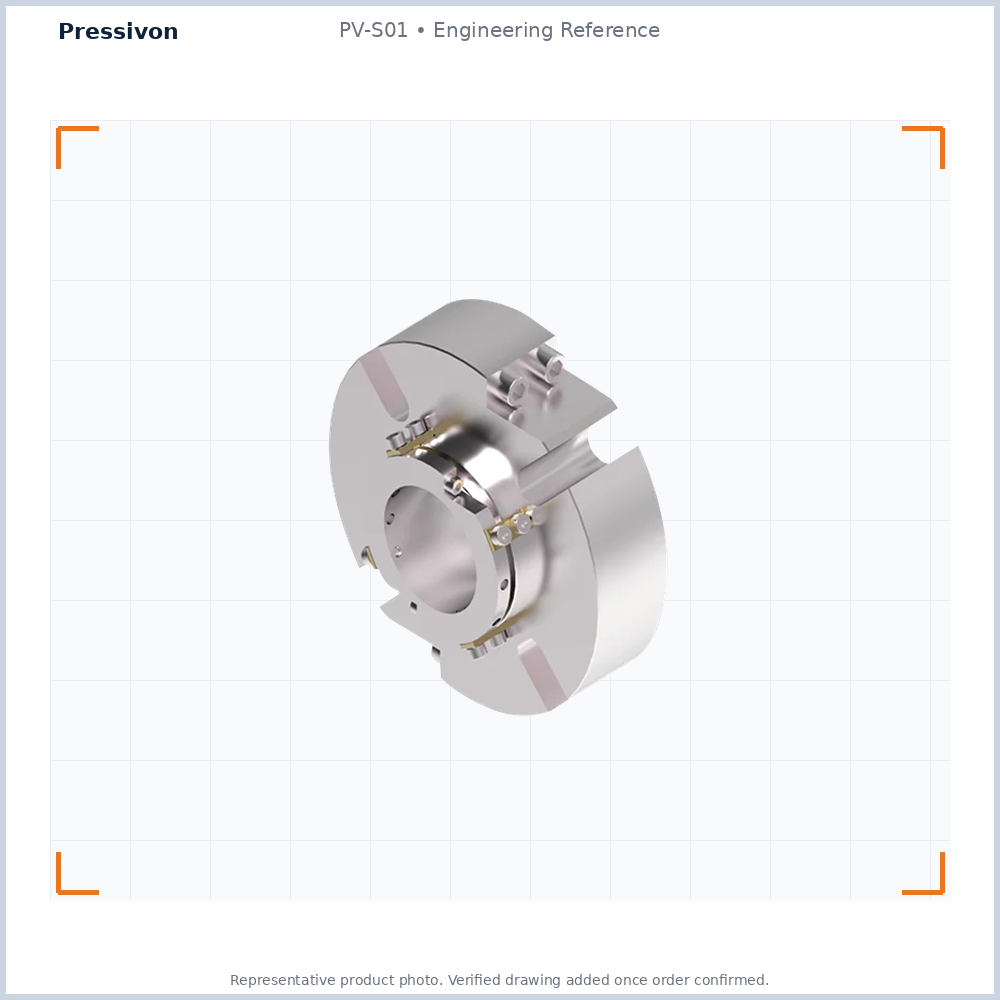

PV-S01 — Split Mechanical Seal
Split seal for applications where shaft dismantling is difficult. Tell us your equipment and operating conditions and we confirm the fit before quoting.
PV-S01 • Engineering Reference
Overview
Split Mechanical Seal in the split seals family, part of the PV-S01 series. Split seal for applications where shaft dismantling is difficult. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-S01 |
|---|---|
| Type | Split Mechanical Seal |
| Family | Split seals |
| Series | PV-S01 |
Materials
| Seal faces | Silicon carbide, carbon |
|---|---|
| Secondary seals | Viton, Aflas |
| Metal components | SS316L, Duplex |
Operating limits
| Shaft diameter | 45 – 219 mm |
|---|---|
| Pressure | 17 bar |
| Temperature | Up to 175°C |
| Speed | 3,600 rpm |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Split design
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-S01 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
