PV-R02 — Rotary Joint / Union
A rotating union that carries steam, water or hot oil into and out of rotating equipment. Tell us your equipment and operating conditions and we confirm the fit before quoting.

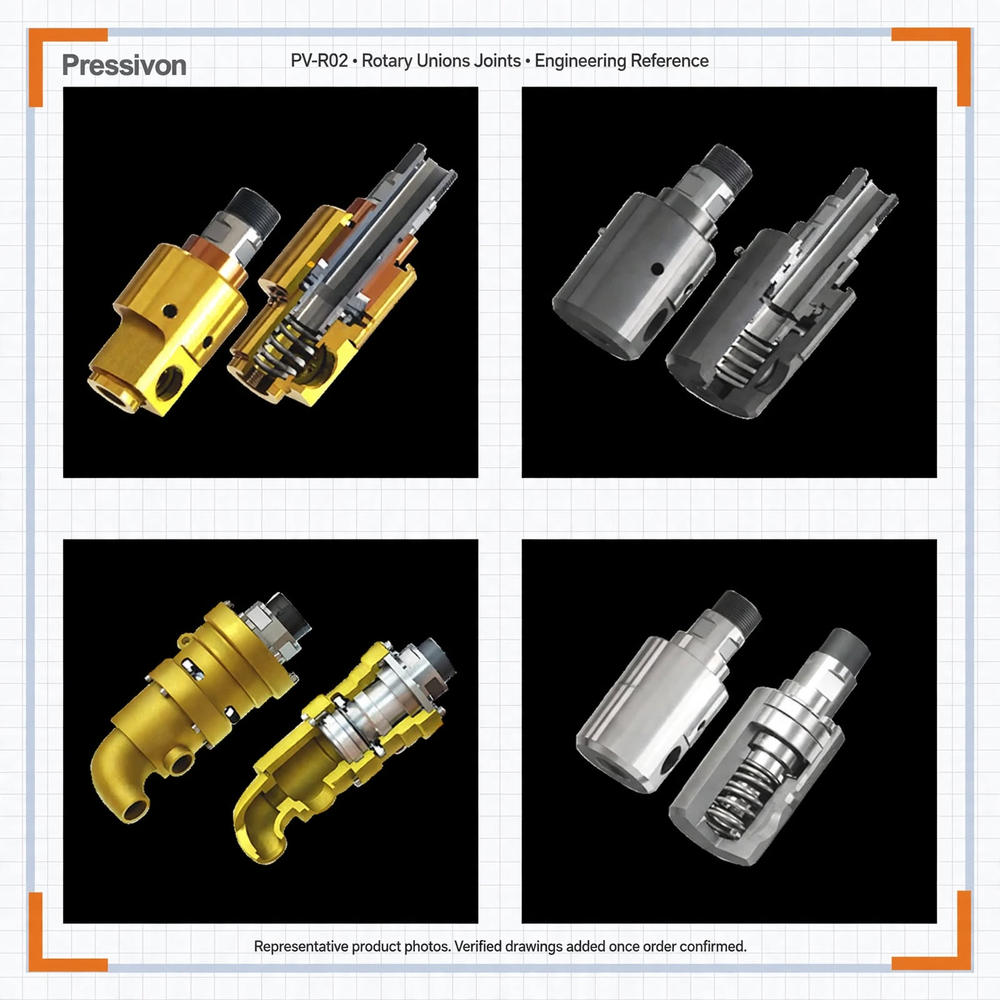

PV-R02 • Engineering Reference
Overview
Rotary Joint / Union in the rotary and support systems family. A rotating union that carries steam, water or hot oil into and out of rotating equipment. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-R02 |
|---|---|
| Type | Rotary Joint / Union |
| Family | Rotary and support systems |
| Series | — |
Materials
| Seal faces | Not specified for this item — tell us and we confirm it |
|---|---|
| Secondary seals | Viton or PTFE elastomer, guide ring in impregnated carbon graphite |
| Metal components | Body and assembly plate: cast iron, mild steel, stainless steel or brass. Nipple: cast iron, mild steel, SS304, SS316 or SS410 |
Operating limits
| Pressure | Up to 150 bar (water) |
|---|---|
| Temperature | Up to 180°C (steam/hot oil) |
| Notes | Specify size, type, application, materials, flow configuration and thread when ordering |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Anti-torque lug keeps the housing from rotating in service
- Carbon-graphite bearing is lubricated by the process fluid
- Long siphon-pipe support keeps load off the siphon-pipe thread
- Serviceable and replaceable on site
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-R02 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
