PV-F10 — Instrumentation Fitting
Leak-tested tube fittings for process, power and instrumentation lines. Tell us your equipment and operating conditions and we confirm the fit before quoting.

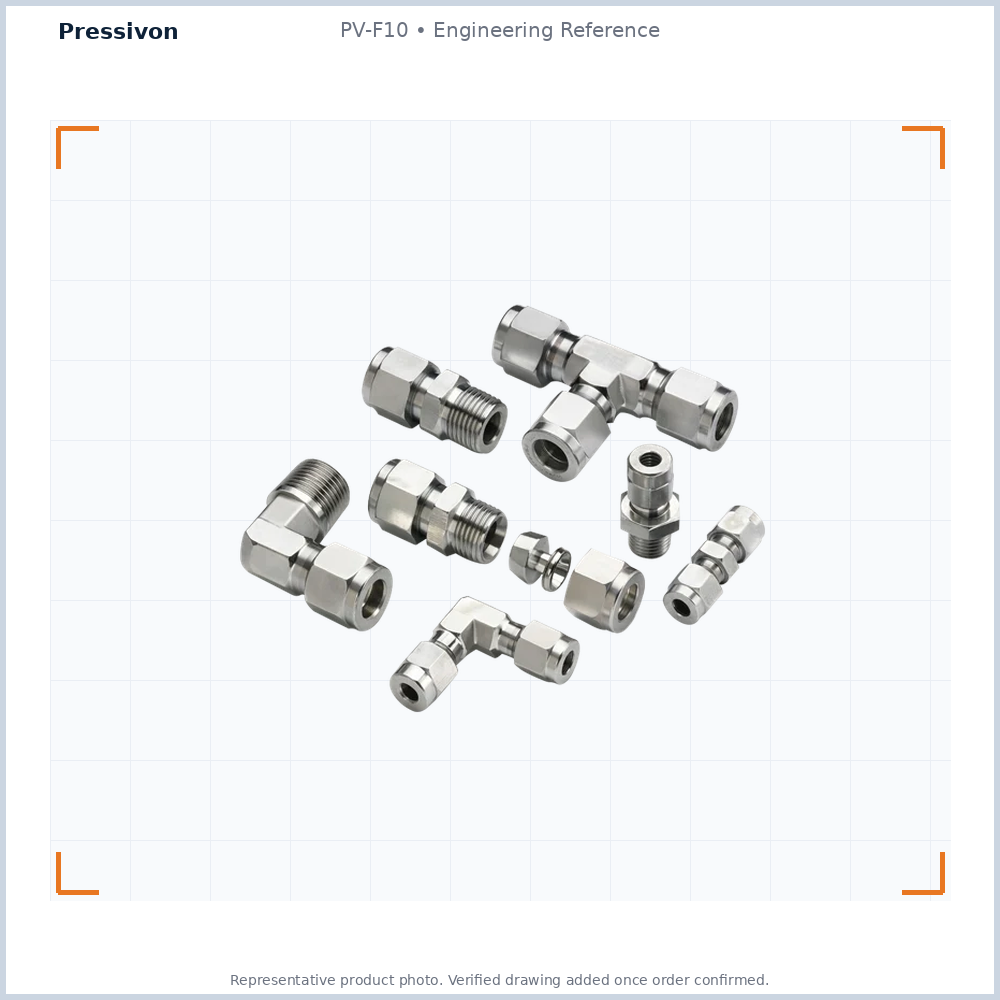

PV-F10 • Engineering Reference
Overview
Instrumentation Fitting in the specialty sealing family. Leak-tested tube fittings for process, power and instrumentation lines. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-F10 |
|---|---|
| Type | Instrumentation Fitting |
| Family | Specialty sealing |
| Series | — |
Materials
| Seal faces | Not specified for this item — tell us and we confirm it |
|---|---|
| Secondary seals | Not specified for this item |
| Metal components | SS316, SS316L, SS304, carbon steel, brass, Monel, Hastelloy |
Operating limits
| Range | Not specified for this item — tell us and we confirm it |
|---|
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Works with seamless and welded-and-redrawn 304/306/316L tubing
- Straight fittings machined from cold-finished bar stock
- Complex fittings forged for strength
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-F10 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
