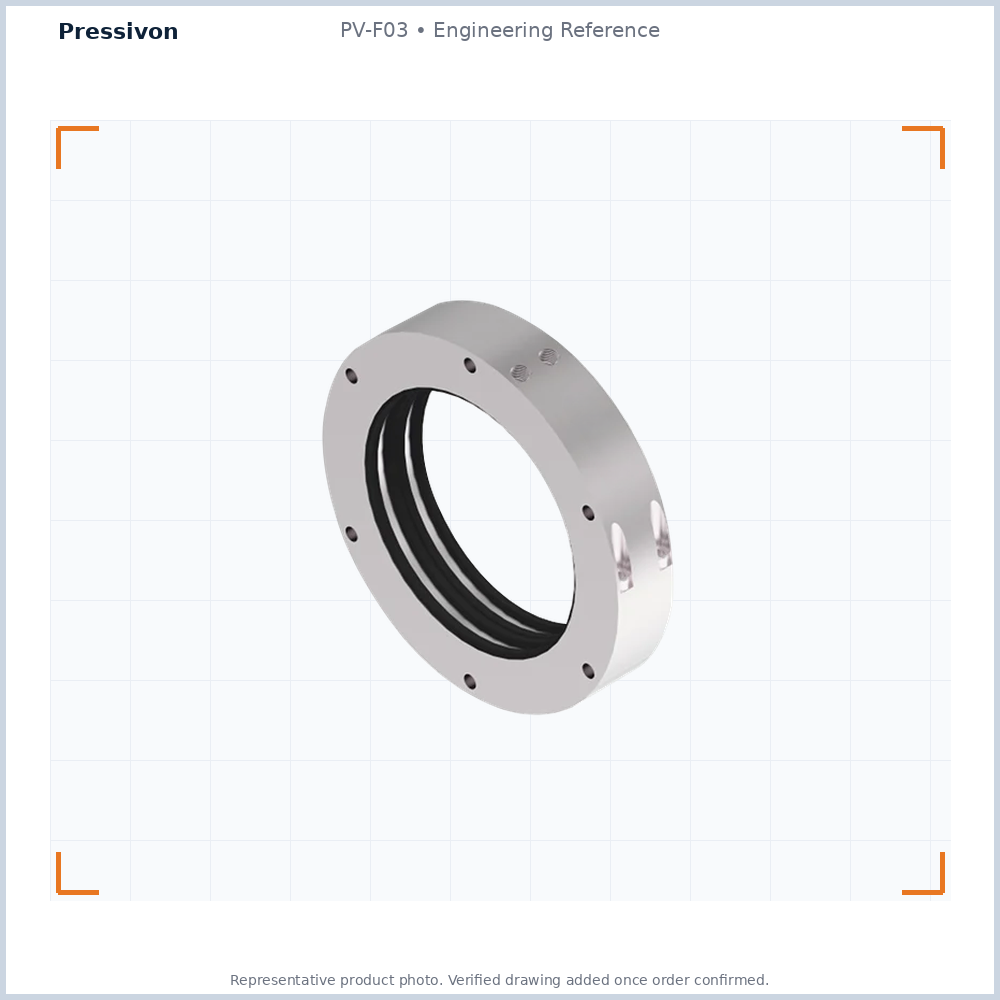

PV-F03 — Carbon Floating Ring Seal
Carbon floating ring seal series. Tell us your equipment and operating conditions and we confirm the fit before quoting.
PV-F03 • Engineering Reference
Overview
Carbon Floating Ring Seal in the specialty sealing family, part of the PV-F03 series. Carbon floating ring seal series. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-F03 |
|---|---|
| Type | Carbon Floating Ring Seal |
| Family | Specialty sealing |
| Series | PV-F03 |
Materials
| Seal faces | Carbon graphite |
|---|---|
| Secondary seals | Not specified for this item |
| Metal components | SS316, SS304, Duplex |
Operating limits
| Shaft diameter | 45 – 300 mm (dh6) |
|---|---|
| Pressure | 3 bar (max) |
| Temperature | -120 to +500°C |
| Sliding velocity | 40 m/s |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Same split-housing design as the WD series
- Multi-part radially-cut rings, self-adjusting
- Runs contact-free, no shaft-mounted components
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-F03 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
