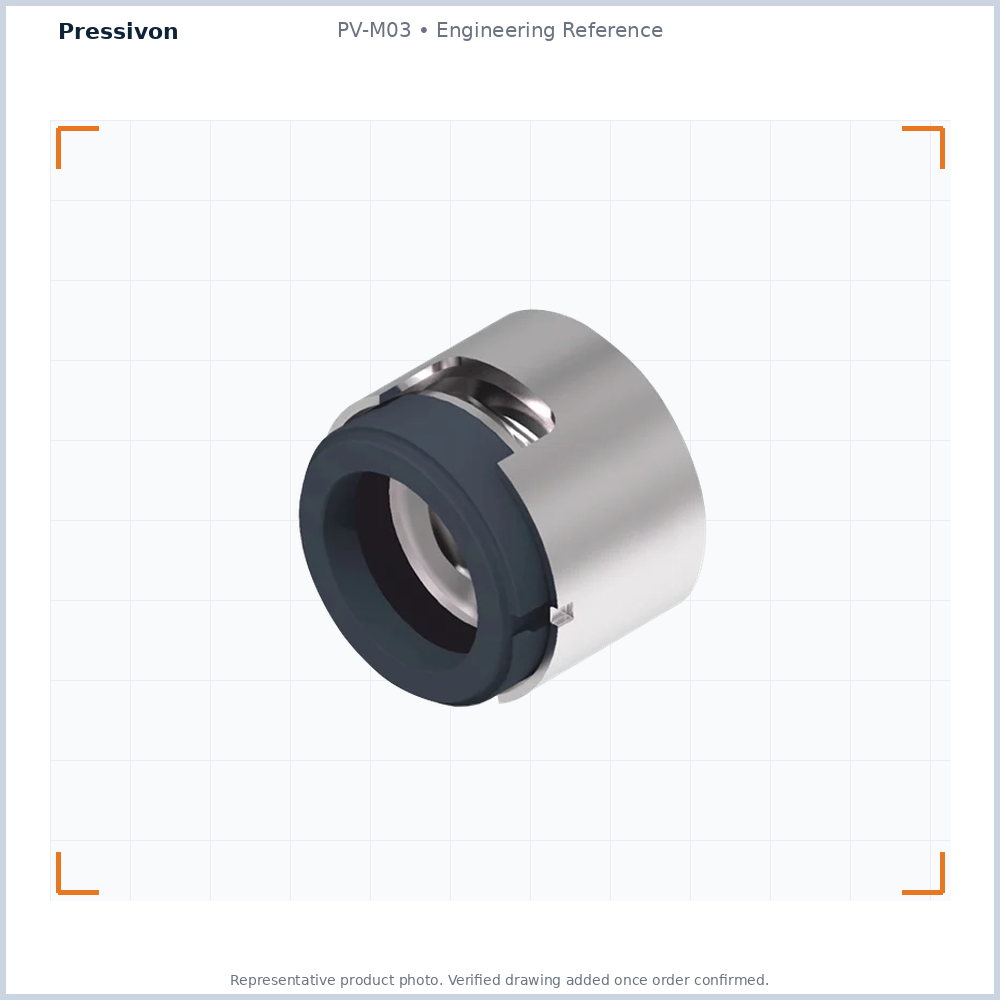

PV-M03 — Mechanical Seal Series
Engineering series reference; final configuration confirmed by RFQ review. Tell us your equipment and operating conditions and we confirm the fit before quoting.
PV-M03 • Engineering Reference
Overview
Mechanical Seal Series in the mechanical seals family, part of the PV-M03 series. Engineering series reference; final configuration confirmed by RFQ review. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-M03 |
|---|---|
| Type | Mechanical Seal Series |
| Family | Mechanical seals |
| Series | PV-M03 |
Materials
| Seal faces | Silicon carbide, carbon graphite |
|---|---|
| Secondary seals | EPDM, NBR, FKM, FFKM |
| Metal components | SS316, SS304, Duplex 2205 |
Operating limits
| Shaft diameter | 14 – 100 mm |
|---|---|
| Pressure | 25 bar (max) |
| Temperature | -50 to +220°C |
| Sliding velocity | 20 m/s |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- For plain shafts
- Single seal, unbalanced
- Super-sinus or multi-spring rotating
- Works in either shaft rotation
- Pumping-screw variant for higher-viscosity media
- PTFE-secondary variant for higher chemical resistance
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-M03 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
