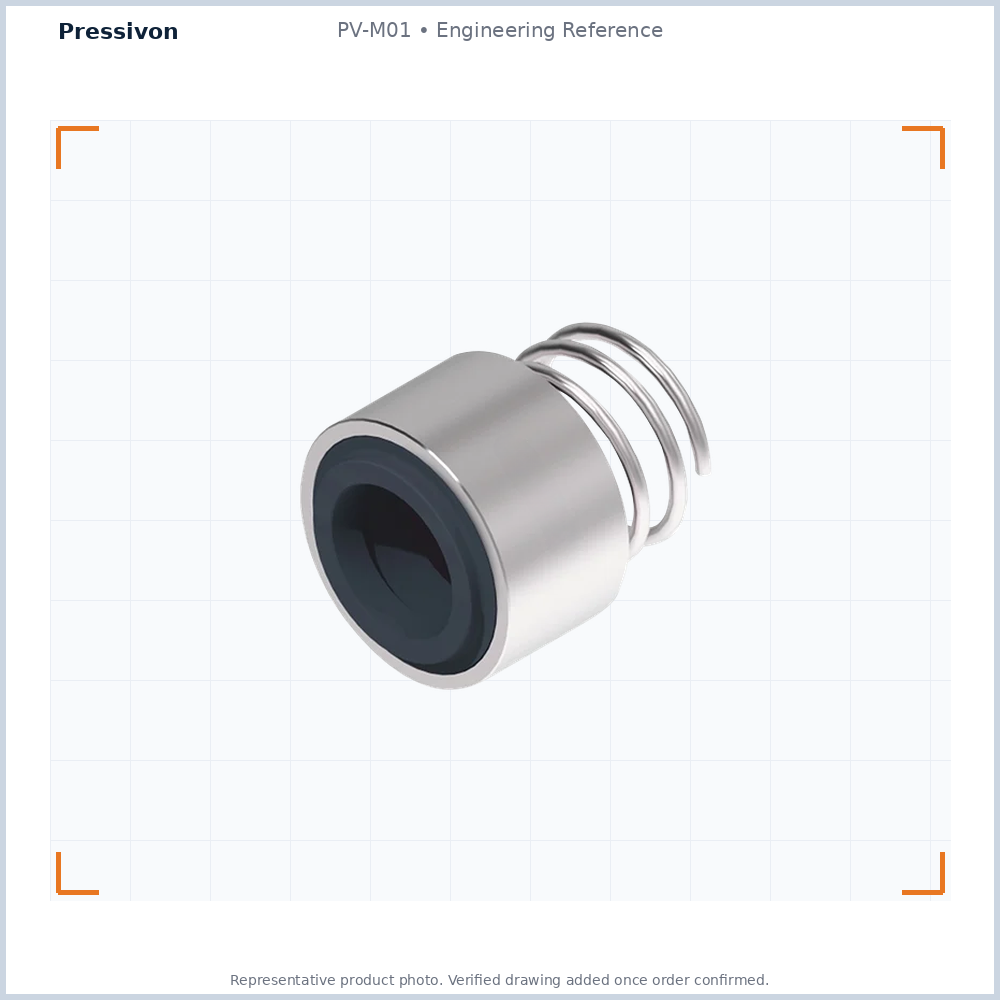

PV-M01 — Conical Spring Mechanical Seal
Conical-spring mechanical seal series. Tell us your equipment and operating conditions and we confirm the fit before quoting.
PV-M01 • Engineering Reference
Overview
Conical Spring Mechanical Seal in the mechanical seals family, part of the PV-M01 series. Conical-spring mechanical seal series. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-M01 |
|---|---|
| Type | Conical Spring Mechanical Seal |
| Family | Mechanical seals |
| Series | PV-M01 |
Materials
| Seal faces | Silicon carbide, carbon graphite |
|---|---|
| Secondary seals | EPDM, NBR, FKM, FFKM |
| Metal components | SS316, SS304 |
Operating limits
| Shaft diameter | 10 – 80 mm |
|---|---|
| Pressure | 25 bar |
| Temperature | -50 to +220°C |
| Sliding velocity | 15 m/s |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- For stepped shafts
- Single seal, balanced
- Rotation-direction dependent
- Torque carried through a conical spring
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-M01 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
