PV-B02 — Elastomer Bellows Mechanical Seal
Elastomer-bellows mechanical seal. Tell us your equipment and operating conditions and we confirm the fit before quoting.

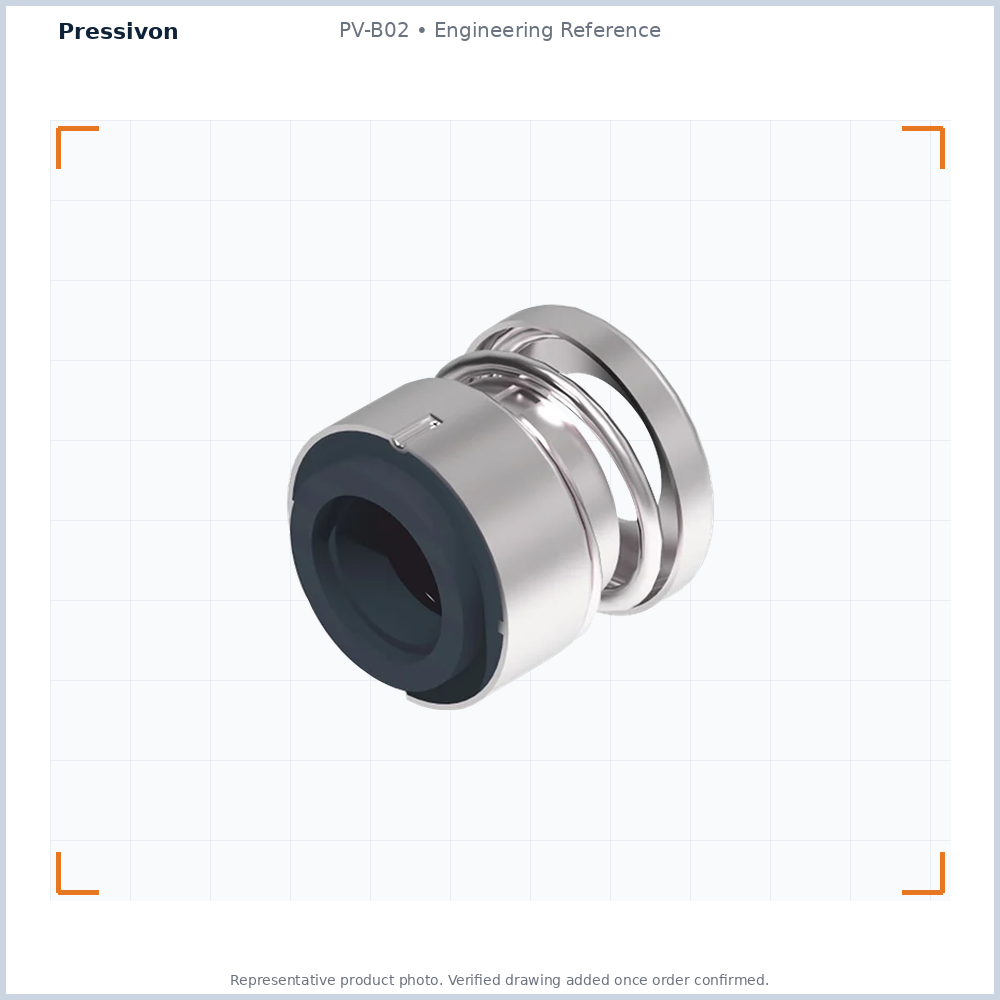

PV-B02 • Engineering Reference
Overview
Elastomer Bellows Mechanical Seal in the bellows seals family, part of the PV-B02 series. Elastomer-bellows mechanical seal. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-B02 |
|---|---|
| Type | Elastomer Bellows Mechanical Seal |
| Family | Bellows seals |
| Series | PV-B02 |
Materials
| Seal faces | Graphite-resin-impregnated carbon, silicon carbide |
|---|---|
| Secondary seals | NBR, FKM |
| Metal components | SS316, SS304 |
Operating limits
| Shaft diameter | 8 – 50 mm |
|---|---|
| Pressure | 7 bar |
| Temperature | -20 to +100°C |
| Sliding velocity | 5 m/s |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- Single seal
- Loosely-fitted, self-adjusting seal face
- In-house-machined sliding components
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-B02 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
