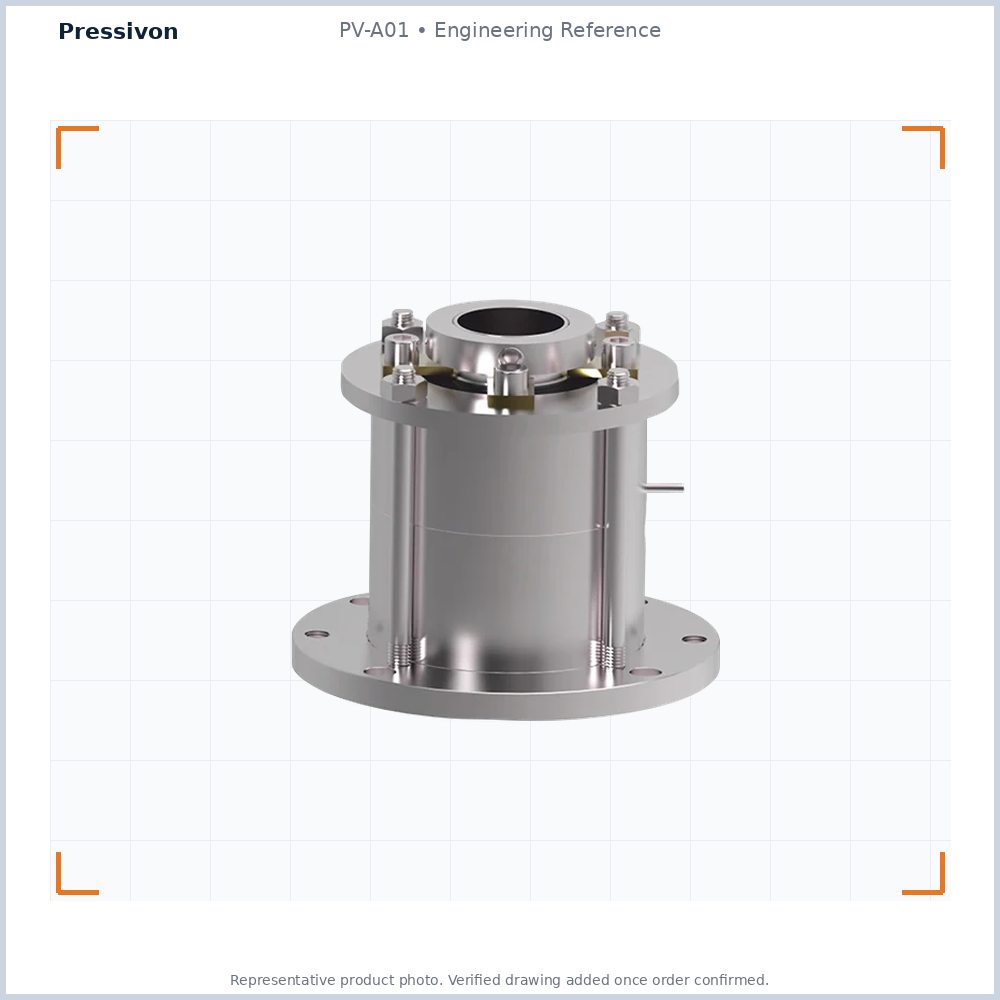

PV-A01 — Agitator / Mixer Seal
Agitator/mixer sealing series. Tell us your equipment and operating conditions and we confirm the fit before quoting.
PV-A01 • Engineering Reference
Overview
Agitator / Mixer Seal in the agitator and reactor seals family, part of the PV-A01 series. Agitator/mixer sealing series. The figures on this page are the standard published range for the series — final face materials, elastomers and working length are set from your application data.
Specifications
| Model | PV-A01 |
|---|---|
| Type | Agitator / Mixer Seal |
| Family | Agitator and reactor seals |
| Series | PV-A01 |
Materials
| Seal faces | Carbon graphite, silicon carbide |
|---|---|
| Secondary seals | Not specified for this item |
| Metal components | Selected to match the application and your specification |
Operating limits
| Shaft diameter | 40 – 200 mm |
|---|---|
| Pressure | 6 bar |
| Temperature | -20 to +150°C |
| Sliding velocity | 2 m/s |
Standard published range for this series. We confirm the exact limit for your equipment in technical review.
Design and characteristics
- For top-entry drives
- For DIN and non-DIN steel vessels
- Nitrogen-pressurized dual seal (single-seal option)
- Balanced, works in either shaft rotation
- Rotating multi-spring, dry-running capable, cartridge unit
Applications
Drawings and downloads
| Dimensional drawing | Available once your order is confirmed |
|---|---|
| Datasheet (PDF) | Datasheet (PDF) PDF, opens in a new tab |
Cross-reference
No verified cross-references to other brands are published for PV-A01 yet. Send the manufacturer and part number of your existing seal and we look for a potential replacement, then verify it in technical review.
